Easy Installation 5W Polycrystalline Solar Panel

Product Description

Easy Installation 5W Polycrystalline Solar Panel
Product Description:

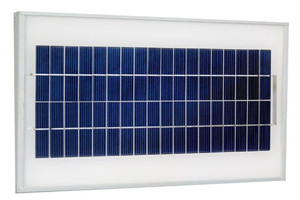

5W Polycrystalline Silicon Solar Module/Solar Panel/PV Module/PV Panel
Product No.: HJ-SP-5W-POLY
With this 5W Polycrystalline Solar Panel, completely utilizing the most powerful and natural energy becomes possible. The cost effective Solar Panel is not only easily installed, but also conveniently transported and handled. The Solar Panel is used appropriately by charging solar lantern. The maximum power is 5 watts, low but safe for people. The raw materials used by Solar Panel is with high quality.

Technical Specifications:
The following are the key technical data of the solar panel,
Maximum power(Pm): 5Watts
Voltage at max power(Vmp): 17.4 V
Current at max power(Imp): 0.28 A
Open circuit voltage: 21.6 V
Short circuit current: 0.31 A
Maximum system voltage: 700 V
Dimension of module: 300*180*15mm

Features and Benefits:
1. Use A-grade solar cell with high efficiency;
2. High transmittance, low iron tempered glass with enhanced stiffness and impact resistance;
3. Anodized aluminum alloy frame with high mechanical strength provides structural strength and holes drilled at the right places for easy installation; and drain holes to minimize water build up behind solar panels.
4. Anti-aging EVA and high flame resistant Back Sheet (TPT), to provide long-life and enhanced cell performance; and for the best protection against water, moisture, UV, and oxidation;
5. Outstanding electrical performance under high temperature and low irradiance conditions;
6. Anti-reflective coating provides uniform black color and increases absorption of light in all weather conditions.
7.100% apply EL(electroluminescence) technology;
8. 5 years limited warranty, 10 years limited warranty for 90% power output, 25 years limited warranty for 80% power output;
9. With CE, IEC61215 and IEC61730 certificate.

Application:
1. Solar power stations;
2. Rural electrification, Small home power systems;
3. Power supply for traffic, security, gas industry;
4.12V and 24V battery charging systems;
5. Other industrial and commercial applications.

We can supply any power Solar Panel, contact us for more information.
