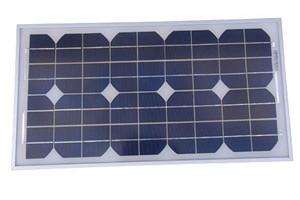

20W Mono-crystalline Silicon Solar Module/Solar

Panel/PV Module/PV Panel

Corrosion-Resistant 20W Monocrystalline Solar Module

Product Description:
20W Mono-crystalline Silicon Solar Module/Solar Panel/PV Module/PV Panel
Product No.: HJ-SP-20W-MONO
1. Use High efficiency monocrystalline solar cell;
2. High-transmission 3.2mm tempered glass.

Technical Specifications:
The following are the key technical data of the solar panel,
Maximum power(Pm): 20watts
Voltage at max power(Vmp): 17.4 V
Current at max power(Imp): 1.15 A
Open circuit voltage: 21.6 V
Short circuit current: 1.27 A
Maximum system voltage: 700 V
Dimension of module: 615*285*25mm

Features and Benefits:
1. Use A-grade solar cell with high efficiency;
2. High transmittance, low iron tempered glass with enhanced stiffness and impact resistance;
3. Anodized aluminum alloy frame with high mechanical strength provides structural strength and holes drilled at the right places for easy installation; and drain holes to minimize water build up behind solar panels.
4. Anti-aging EVA and high flame resistant Back Sheet (TPT), to provide long-life and enhanced cell performance; and for the best protection against water, moisture, UV, and oxidation;
5. Outstanding electrical performance under high temperature and low irradiance conditions;
6. Anti-reflective coating provides uniform black color and increases absorption of light in all weather conditions.
7.100% apply EL(electroluminescence) technology;
8. 5 years limited warranty, 10 years limited warranty for 90% power output, 25 years limited warranty for 80% power output;
9. With CE, IEC61215 and IEC61730 certificate.

Application:
1. Solar power stations;
2. Rural electrification, Small home power systems;
3. Power supply for traffic, security, gas industry;
4.12V and 24V battery charging systems;
5. Other industrial and commercial applications.

We can supply any power Solar Panel, contact us for more information.
