10W Mono-crystalline Silicon Solar Module/Solar

Panel/PV Module/PV Panel

Product Description

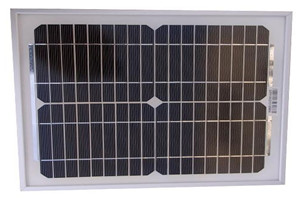

10W Mono-crystalline Silicon Solar Module/Solar Panel/PV Module/PV Panel
Product No.: HJ-SP-10W-MONO
This type of solar panel is very easy to transport and handle, and you can easily combine two or more of these solar panels to get 20, 40watts of power with a variety of voltage and amperage settings for maximum flexibility.

Technical Specifications:
The following are the key technical data of the solar panel,
Maximum power(Pm): 10watts
Voltage at max power(Vmp): 17.4 V
Current at max power(Imp): 0.57 A
Open circuit voltage: 21.6 V
Short circuit current: 0.63 A
Maximum system voltage: 700 V
Dimension of module: 340*285*25mm

Features and Benefits:
1. Use A-grade solar cell with high efficiency;
2. High transmittance, low iron tempered glass with enhanced stiffness and impact resistance;
3. Anodized aluminum alloy frame with high mechanical strength provides structural strength and holes drilled at the right places for easy installation; and drain holes to minimize water build up behind solar panels.
4. Anti-aging EVA and high flame resistant Back Sheet (TPT), to provide long-life and enhanced cell performance; and for the best protection against water, moisture, UV, and oxidation;
5. Outstanding electrical performance under high temperature and low irradiance conditions;
6. Anti-reflective coating provides uniform black color and increases absorption of light in all weather conditions.
7.100% apply EL(electroluminescence) technology;
8. 5 years limited warranty, 10 years limited warranty for 90% power output, 25 years limited warranty for 80% power output;
9. With CE, IEC61215 and IEC61730 certificate.

Application:
1. Solar power stations;
2. Rural electrification, Small home power systems;
3. Power supply for traffic, security, gas industry;
4.12V and 24V battery charging systems;
5. Other industrial and commercial applications.

We can supply any power Solar Panel, contact us for more information.
